Balustrade glass
10mm transparent tempered balustrade glass
  • 10mm transparent tempered balustrade glass
  • 10mm transparent tempered balustrade glass
  • 10mm transparent tempered balustrade glass
  • 10mm transparent tempered balustrade glass
  • 10mm transparent tempered balustrade glass
10mm transparent tempered balustrade glass10mm transparent tempered balustrade glass10mm transparent tempered balustrade glass10mm transparent tempered balustrade glass10mm transparent tempered balustrade glass

10mm transparent tempered balustrade glass

Product Introduction:

10mm transparent tempered balustrade glass

Glass name: factory 10mm transparent tempered balustrade glass

Glass other name: supplier 10mm transparent strengthened balustrade glass, manufacture 10mm transparent toughened balustrade glass

Glass other thickness: 8mm 12mm

Glass installation method: floor mounting, side mounting, core mounting

Color: clear, low iron, super clear, grey, dark.

Certification: BS6206/EN12150/CSi and CCC


Share

Product details

BTG 10mm transparent tempered balustrade glass

How do we define balustrade glass?

1. Balustrade glass protect human from falling off, and reducing accident.

2. Balustrade glass is an art of modern building design

3. Balustrade glass can be named railing glass, pool fence, or any application need to be used glass as protection barrier.

4. Balustrade glass is beautiful and modernized.

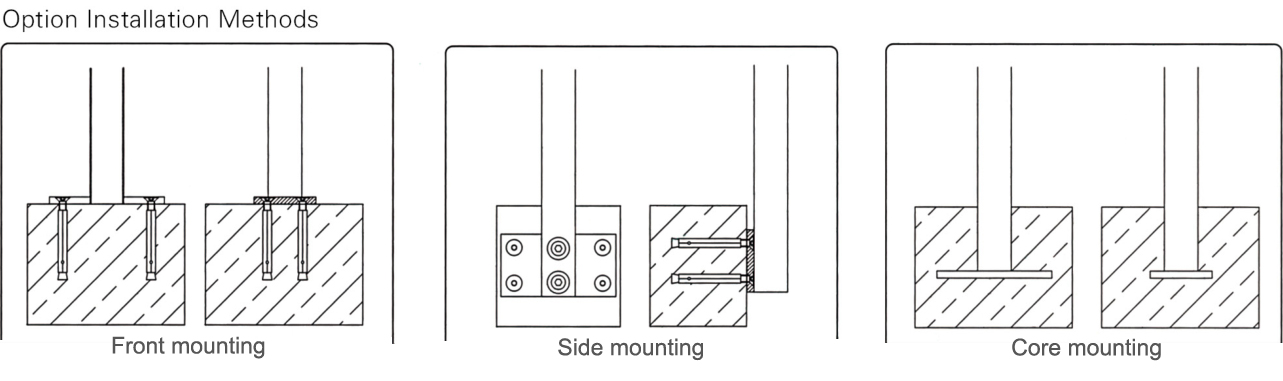

Glass installation method: floor mounting, side mounting, core mounting

10mm transparent tempered balustrade glass

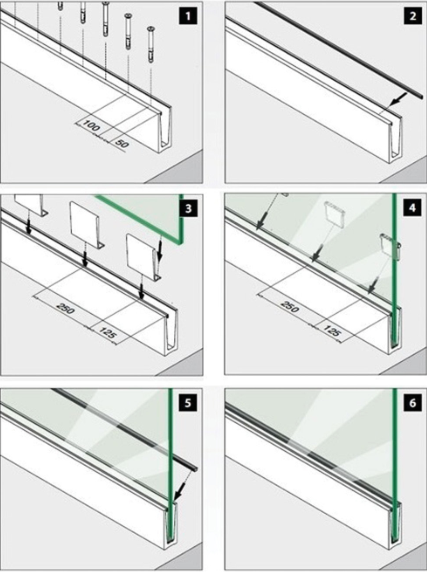

Glass installation standard(as reference)

1. Height of glass railing according to the house structure.

1) The actual balcony glass railings of low-rise and multi-storey residential buildings shall not be lower than 1.05m. The net height of balcony railings of middle-high and high-rise residential buildings shall not be lower than 1.10m. 2) The height of stair handrail shall not be less than 0.90m. When the length of handrail of stair horizontal section is greater than 0.5m, the height of handrail shall not be less than 1.05m.

2. The glass balustrade shall be designed to prevent children from climbing. The clearance between the vertical bars of the railing shall not be greater than 0.11m. Measures must be taken to prevent children from sliding when the clearance of the stairwell is greater than 0.11m.

3. The net distance between the vertical bars of glass railings and handrails should not be greater than 0.11m to prevent children from drilling out.

10mm transparent tempered balustrade glass

Specification

Glass brand name: BTG Better Glass

Glass thickness: 10mm

Glass size: customized maximum: 2440mm*8000mm

Glass shape: curved transparent tempered balustrade glass, irregular transparent tempered balustrade glass, flat transparent tempered balustrade glass. The glass shape can be made to order.

Certification: BS6206/EN12150/CSi

Packing: All tempered glass packed in safety strong polywood crate banded with steel strip, suitable for ocean and land carriage.

1. Put cork between two glasses.

2. Crate has space for forklift loading and unloading.

Delivery time: 8-10days

More info of BTG

Welcome to contact us BTG for more information!

BTG Website: http://www.better-glass.com

BTG News and projects: https://www.better-glass.com/news-events/
