BTG 5mm 6mm tempered low e glass
Product Introduction:
Glass name: BTG 5mm 6mm tempered low e glass
Other name: BTG 5mm 6mm tempered low e glass, BTG 5mm 6mm strengthened low e glass, BTG 5mm 6mm toughened low e glass
Glass shape: flat tempered low e glass or curved tempered low e glass
Glass color: blue tempered low e glass, green tempered low e glass, grey tempered low e glass etc.
Thickness of glass: 3mm 4mm 5mm 6mm 8mm 10mm 12mm etc.
Product details
Introduction of low e glass
Low-E glass is a film product that is coated with multiple layers of metal or other compounds on the glass surface. Its coating layer has the characteristics of high transmission of visible light and high reflection of middle and far infrared rays. Compared with ordinary glass and traditional architectural coated glass, it has excellent heat insulation effect and good light transmission.
Classification of low e glass
In the industry, from the perspective of manufacturing process, low-e reflective glass has two major categories: online coating and offline coating.
Single silver Low-E coated glass usually contains only one functional layer (silver layer), plus other metal and compound layers, the total number of film layers reaches 5 layers.
Double Silver Low-E glass
Double silver Low-E coated glass has two functional layers (silver layer), plus other metal and compound layers, the total number of film layers reaches 9 layers. However, the technical control of Double-Silver Low-E glass is much more difficult than that of single-silver.
Triple silver Low-E glass
The triple silver is a composite film system with three silver layers spaced on the surface of a glass substrate.
Advantages of low e glass
1. The reflective glass are rich in color
2. Ideal visible light transmittance and reflectance
3. High Infrared Reflectivity
4. Reducing UV transmission
5. Ideal shading coefficient
Application of low e glass

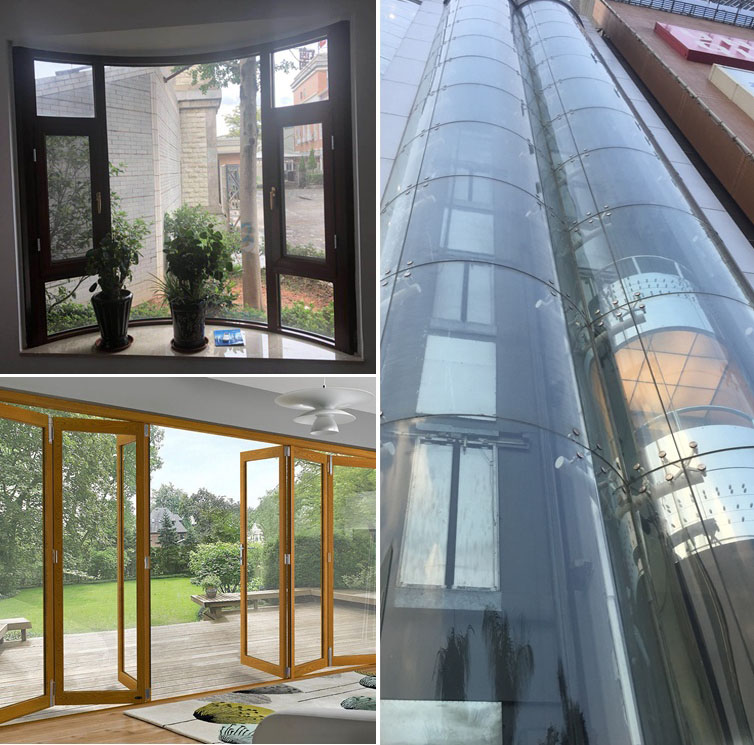

Low e glass can be used in building curtain walls, doors and windows. Low e glass can also be made of laminated glass or insulated glass, which can achieve more effects.
