BTG Factory 10.14mm strengthened PDLC smart switchable glass

BTG 10.14mm strengthened PDLC smart switchable glass

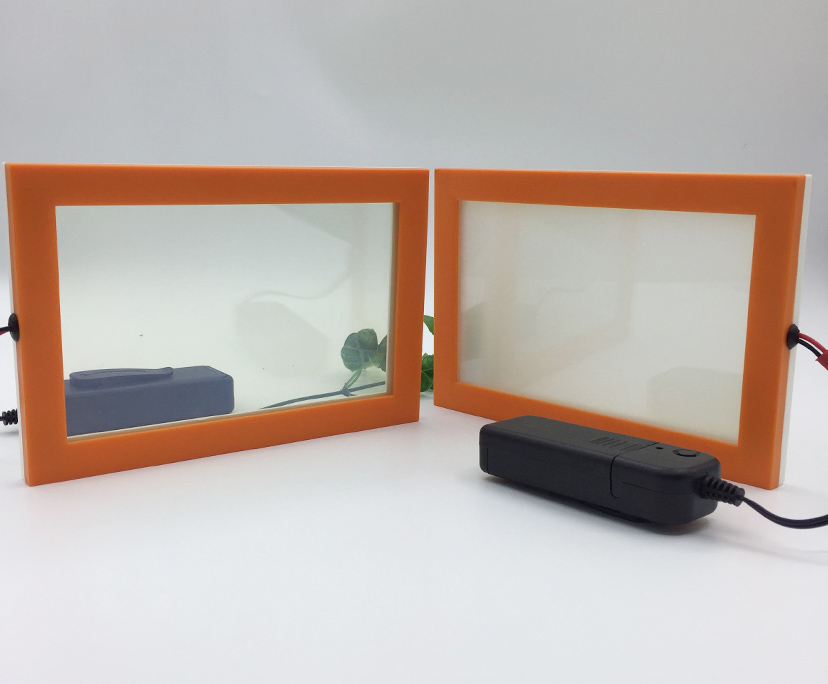

Smart switchable glass is composite with the liquid crystal film between two layers of glass, with high temperature and pressure bonding to form the new special photoelectric glass products. The user controls the transparent and opaque state of the glass by switch or remote control.

Glass characteristics

1. Strengthened PDLC smart switchable glass is a kind of safety glass. Even if the glass is damaged by external force, the debris will be a honeycomb-like dull small particle, which is hard to cause serious damage to human body.

2. Privacy protection. Because of the characteristics of the liquid crystal film sandwich, dimming glass can also be used as a projection screen replace of ordinary screen, showing high-definition screen image on the glass.

3. Modernization and artistic. Compared with pure strengthened glass, the 10.14mm strengthened PDLC smart switchable glass is modernized and artistic with attraction.

Applications

Strengthened PDLC smart switchable glass is an art in glass industry, which has widely used in modern buildings, like followings:

1. Strengthened PDLC smart switchable glass for doors

2. Strengthened PDLC smart switchable glass for windows

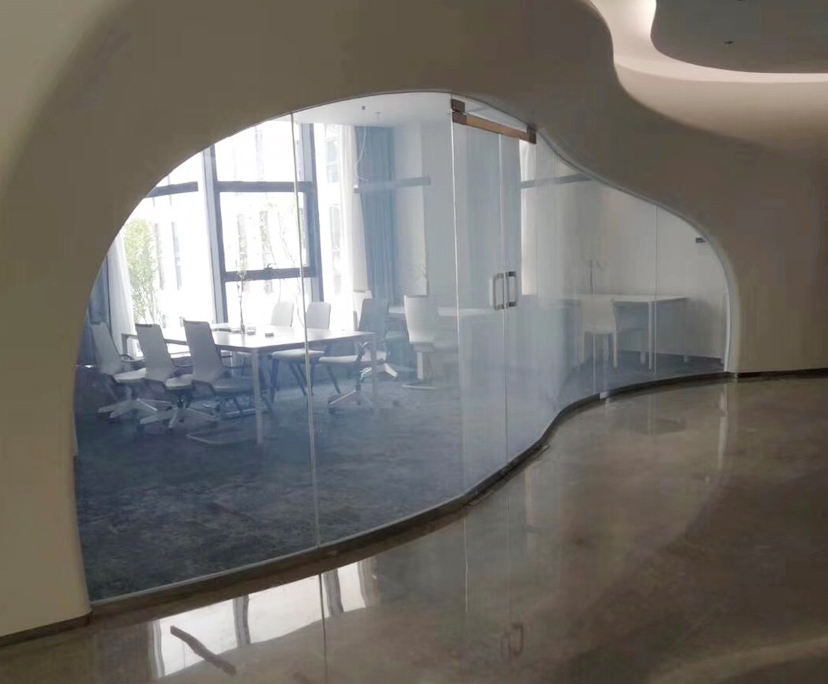

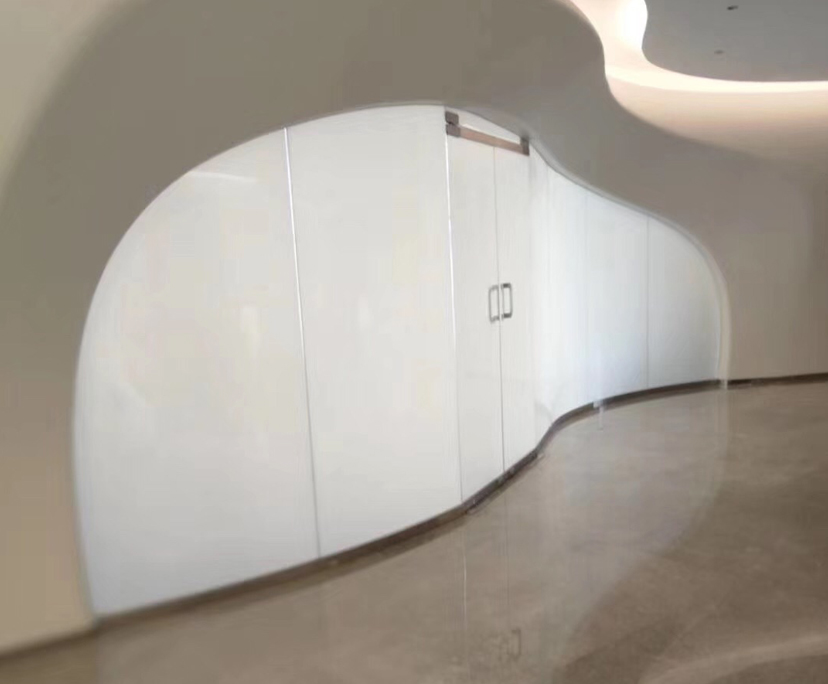

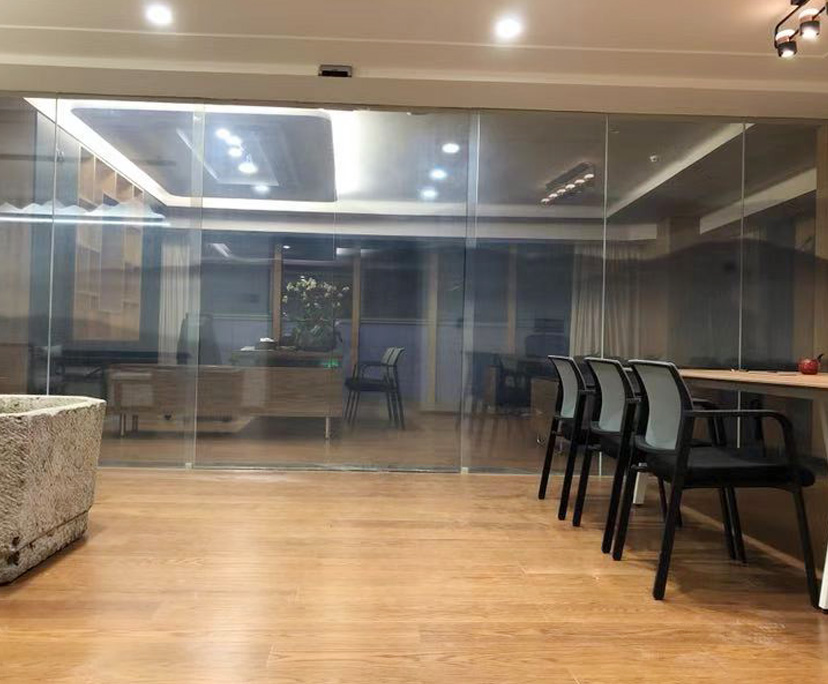

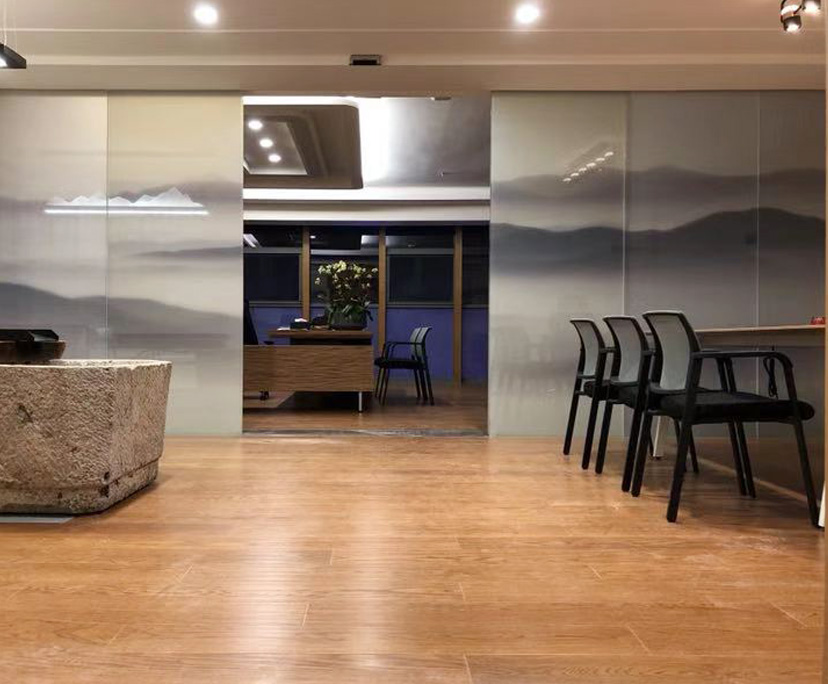

3. Strengthened PDLC smart switchable glass for partitions

4. Strengthened PDLC smart switchable glass for shower panel

Specification

Glass brand name: BTG Better Glass

Glass thickness: 5mm+1.14+5mm

Glass type: float glass, strengthened glass

Color: clear, low iron, Europe grey, French green, ford blue, ocean blue, crystal bronze, black.

Glass size: customized maximum: width: 1800mm* length is unlimited

Glass shape: curved strengthened PDLC smart switchable glass, square strengthened PDLC smart switchable glass, rectangle strengthened PDLC smart switchable glass, flat strengthened PDLC smart switchable glass. The glass shape can be made to order.

Certification: BS6206/EN12150/CSI

Packing: All 10.14mm strengthened PDLC smart switchable glass packed in safety strong polywood crate banded with steel strip, suitable for ocean and land carriage.

1. Put cork between two glasses.

2. Crate has space for forklift loading and unloading.

Delivery time: 8-10days
