Reflective Glass

BTG 8mm 10mm 12mm anti glare toughened reflective glass

Product Introduction:

BTG 8mm 10mm 12mm anti glare toughened reflective glass

Glass name: factory 8mm 10mm 12mm anti glare toughened reflective glass

Other name: supplier 8mm 10mm 12mm anti glare toughened reflective glass, manufacture 8mm 10mm 12mm anti glare toughened reflective glass

Glass type: float glass, toughened glass, reflective glass

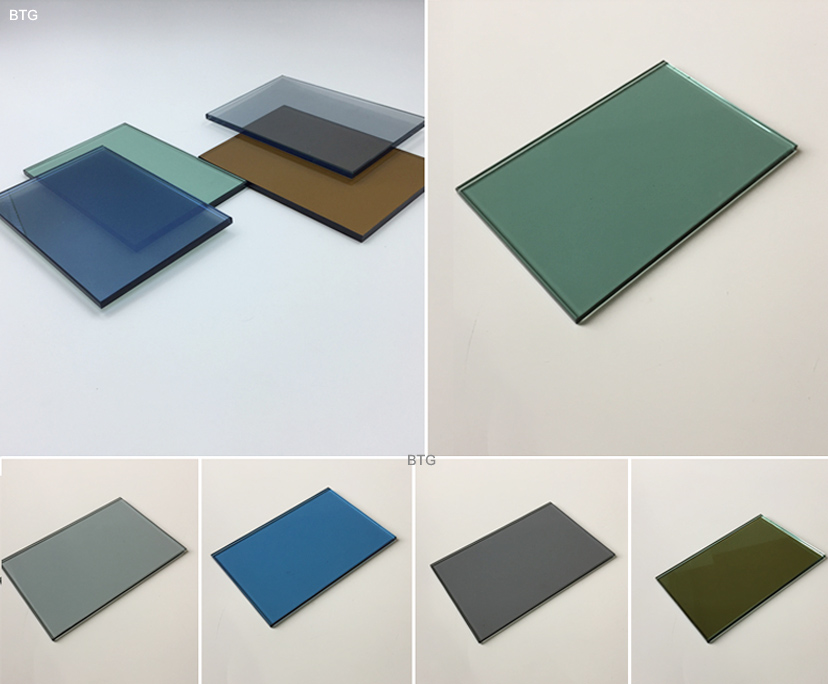

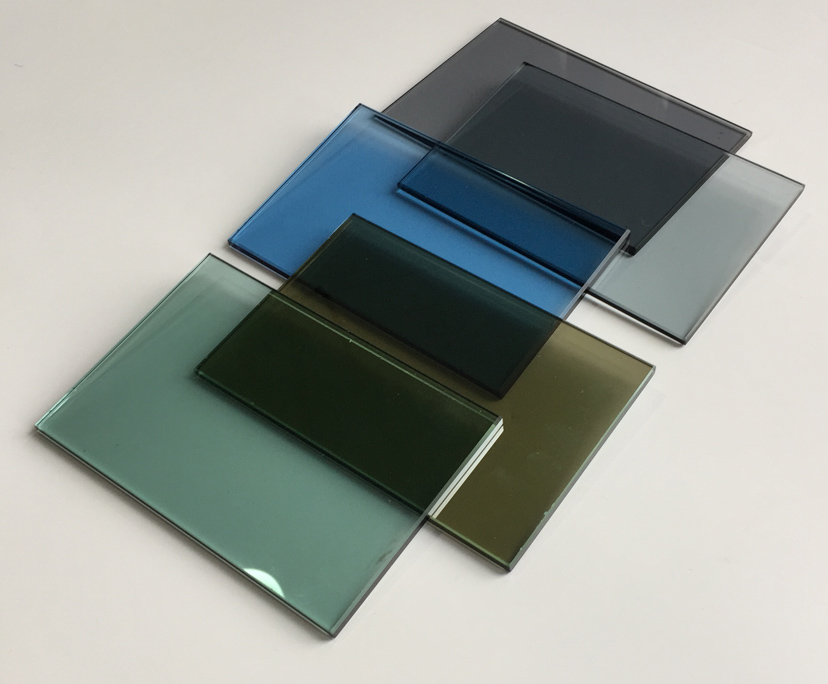

Color: high transparency, grey, green, blue, crystal bronze, black, golden, purple, silver grey, etc.

Certification: BS6206/EN12150/CSI/CE/Intertek

Share

Product details

BTG supplier 8mm 10mm 12mm toughened reflective glass

Heat-reflective glass is made of colorless and transparent flat glass plated with metal film or metal oxide film, which is also called coated glass or sunlight-control film glass. It adopts pyrolysis method, vacuum evaporation method, cathode sputtering method, etc. The surface of the glass is coated with a metal or metal oxide film such as gold, silver, copper, aluminum, chromium, nickel and iron; or an electro-float plasma The exchange method uses metal ions to replace the original ions on the surface of the glass to form a heat reflective film.

BTG 8mm 10mm 12mm anti glare toughened reflective glass

Characteristics

(1) Reflective glass has the function of reflecting and shielding light (also called sunlight control ability). The heat-reflective glass has a transmittance of visible light in the range of 20% to 65%. Reflective glass can reflect up to 50% of infrared and near-infrared rays with strong thermal effects in sunlight, while ordinary glass has only 15%. Reflective glass can effectively shield the solar radiant energy entering the room under the condition that the indoor lighting is soft.

(2) Unidirectional image transmission. Reflective glass has unidirectional image transmission. The metal layer on the surface of the coated heat-reflective glass is extremely thin, which makes its light-emitting surface have the characteristics of a mirror, and on the back side, it is as transparent as window glass. That is, during the daytime, you can see outdoor scenery indoors, but you can't see the most like indoors. It acts as a shelter and curtain for the interior of the building. At night, the opposite is true. People indoors cannot see the outside, but outdoors can clearly see the indoors. This makes sense for the decoration of shops and the like. The use of heat-reflective glass as curtain walls, doors and windows can turn the entire building into a glittering glass palace. Heat-reflective glass provides good conditions for the innovation of architectural design and the treatment and composition of facades.

(3) Mirror effect. Heat-reflective glass has a strong specular effect, so reflective glass is also called specular glass. Using this glass as a glass curtain wall, the surrounding landscape and sky clouds can be mapped on the curtain wall to form a gorgeous picture, so that the building and the natural environment can reach perfect harmony. Heat-reflective glass is available in gray, bronze, brown, gold, light blue, and bronze.

(4) High energy saving for reflective glass with heat reflective function.

(5) BTG reflective glass increase aesthetic sense to building façade or envelop.

BTG 8mm 10mm 12mm anti glare toughened reflective glass

Application and reflective glass classification

1. anti glare toughened reflective insulated glass

2. anti glare toughened reflective glass used in window

3. anti glare toughened reflective glass used in facade

4. anti glare toughened reflective glass used in skylight

5. toughened reflective glass used in decoration

6. toughened reflective glass used in architecture

BTG 8mm 10mm 12mm anti glare toughened reflective glass

Specification

Glass brand name: BTG Better Glass

Glass thickness: 8mm 10mm 12mm

Glass size: customized maximum: 2440mm*8000mm

Certification: BS6206/EN12150/CSI/CE/Intertek

Packing: All toughened reflective glass packed in safety strong polywood crate banded with steel strip, suitable for ocean and land carriage.

1. Put cork between two glasses.

2. Crate has space for forklift loading and unloading.

Delivery time: 8-12days
