10mm clear+12A+10mm tempered reflective insulated glass curtain wall, 32mm tempered reflective IGU factory
Glass name: 10mm clear+12A+10mm tempered reflective insulated glass curtain wall, 32mm tempered reflective IGU factory
Other name: 10mm clear+12A+10mm tempered reflective IGU curtain wall, 32mm tempered reflective insulated glass factory, 10mm clear+12A+10mm tempered reflective hollow glass curtain wall, 32mm tempered reflective double glazing glass curtain wall
Glass shape: flat insulated glass or curved insulated glass
Composition: 10mm tempered clear glass+ 12A dry gas+10mm reflective tempered glass
Spacer: air or argon gas
Spacer thickness: 6A 9A 12A 15A 16A etc.
Glass color: clear, super clear, blue, green, grey etc.
Thickness of single glass: 4mm 5mm 6mm 8mm 10mm 12mm etc.
Introduction of insulated glass curtain wall
BTG 10mm+12A+10mm clear reflective insulated glass,32mm clear hollow glass (IGU) also called insulated glazing glass, thermal insulation glass, double glazed glass. Insulated glass is composed of two or more layers of flat or curved glass, surrounded by high-strength high-density composite adhesive, the two or more pieces of 6mm tempered glass and seal, the glass of the bonding and sealing. The middle fill with dry gas, the spacer fill with desiccant to ensure that the glass between the air dryness. The function of air or argon gas spacer is reduce water vapor penetration. The insulated glass is sealed by a secondary edge seal and that make structural robustness to the insulated glass. The aluminum spacer contains desiccant and can absorb humidity from or within the air space.

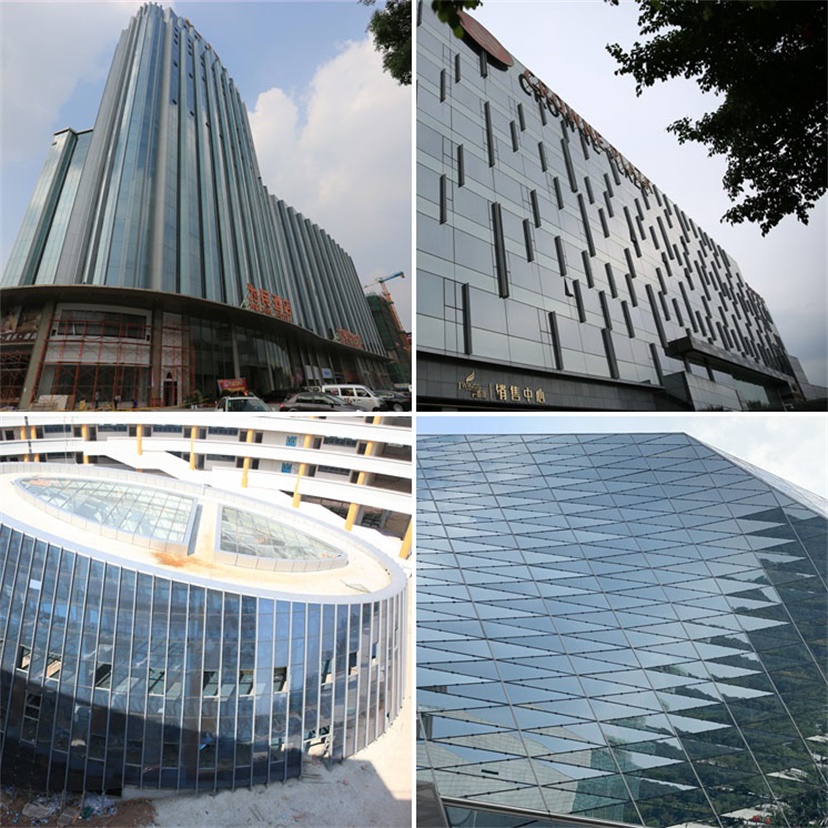

Advantages of insulated glass curtain wall
The glass curtain wall is a new type of contemporary wall. The biggest feature it gives to the building is the organic unification of architectural aesthetics, building functions, building energy efficiency, and building structure. The building presents different colors from different angles. Moonlight, light changes give people a dynamic beauty. It has the advantages of light weight, beautiful appearance, not easy pollution, energy saving, etc. The inner side of the outer glass of the curtain wall is coated with a colored metal coating. From the appearance, the entire outer wall looks like a mirror, reflecting the scenery of the sky and the surrounding environment into it. When the light changes, the image is colorful and infinite. Under the reflection of light, the room is not illuminated by strong light, and the vision is soft. Glass curtain wall refers to the mirror glass used as the decoration of the exterior wall of the building. It is added with a small amount of Fe, Ni, Co, Se, etc. in the float glass composition, and is tempered to make a color transparent plate glass. It can absorb infrared rays and reduce The solar radiation entering the room reduces the room temperature. It can both reflect light like a mirror and transmit light like glass.
Application of insulated glass curtain wall
Insulating glass is mainly used in buildings that require heating, air conditioning, noise or condensation prevention, and the need for direct sunlight and special light. It is widely used in residential, hotel, office buildings, schools, hospitals, shops and other places where indoor air conditioning is required.
