5mm clear tempered glass + 1.52PVB + 5mm clear tempered glass + 100A + 5mm clear tempered glass + 1.52PVB + 5mm clear tempered glass (with screen printing)
Product Introduction:
Glass name: 5mm clear tempered glass + 1.52PVB + 5mm clear tempered glass + 100A + 5mm clear tempered glass + 1.52PVB + 5mm clear tempered glass insulated glass, 123mm clear laminated tempered IGU curtain wall
Other name: 11.52 clear laminated tempered + 100A + 11.52 clear laminated tempered insulated glass, 123mm clear laminated tempered insulated glass, safety laminated tempered double glazing glass curtain wall, 123mm laminated tempered IGU factory
Glass shape: flat insulated glass
Composition: 11.52mm clear laminated tempered glass + 100mm argon gas space + 11.52mm clear laminated tempered glass (each laminated glass: 5mm clear tempered glass + 4 layers PVB + 5mm clear tempered glass)
Spacer: argon gas
Spacer thickness: 100mm
Glass color: clear
Thickness of single glass: 11.52mm laminated tempered glass
Product details
Introduction of Insulated Glass Curtain Wall
Insulated Glass is composed of two 11.52mm clear laminated tempered glass units (each laminated unit made of 5mm clear tempered glass + 4 layers PVB + 5mm clear tempered glass), surrounded by high-strength high-density composite adhesive to bond and seal the panes. The middle cavity is filled with dry air, and the aluminum spacer is filled with desiccant to ensure the dryness of the air between the glass panes. The function of the air spacer is to reduce water vapor penetration. The Insulated Glass is sealed by a secondary edge seal, which ensures structural robustness. The aluminum spacer contains desiccant and can absorb humidity from the air space.
Advantages of Insulated Glass Curtain Wall
The Insulated Glass curtain wall is a new type of contemporary wall. The biggest feature it gives to the building is the organic unification of architectural aesthetics, building functions, building energy efficiency, and building structure. The building presents different colors and visual effects from different angles; changes in moonlight and light bring a dynamic beauty. It has the advantages of light weight, beautiful appearance, not easy pollution, high safety, excellent sound insulation and energy saving.

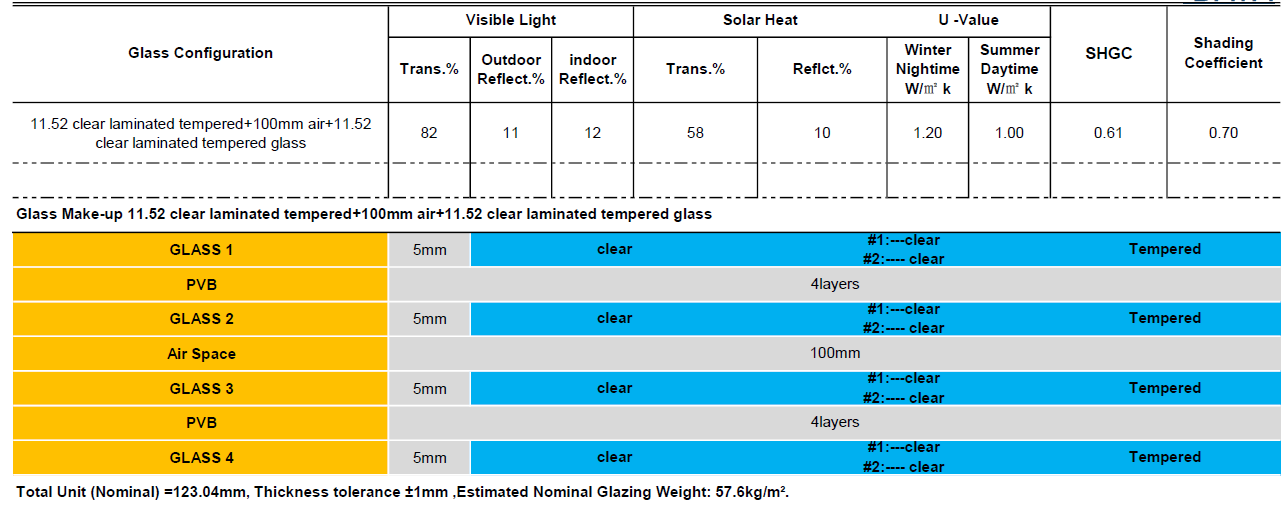

The 11.52mm clear laminated tempered glass features 82% visible light transmittance, 11% outdoor visible light reflectance, and 12% indoor visible light reflectance. It offers bright and soft indoor lighting without causing light pollution. The 100mm wide air cavity significantly improves thermal and acoustic performance: the U-value is as low as 1.20 W/m²·K in winter nighttime and 1.00 W/m²·K in summer daytime, with a SHGC of 0.61 and shading coefficient of 0.70.
It can absorb infrared rays and reduce solar radiation entering the room, lowering indoor temperature. The laminated tempered glass structure provides high impact resistance, and the glass remains intact when broken to prevent splashing, ensuring building safety. It can both transmit light clearly and offer effective thermal insulation.
Application of Insulated Glass Curtain Wall
Insulating glass is mainly used in buildings that require heating, air conditioning, noise or condensation prevention, high safety requirements, and demand for natural daylight. It is widely used in high-end residential buildings, hotels, office buildings, schools, hospitals, shopping malls, commercial complexes and other places where indoor air conditioning, quiet environment and safety protection are required.
