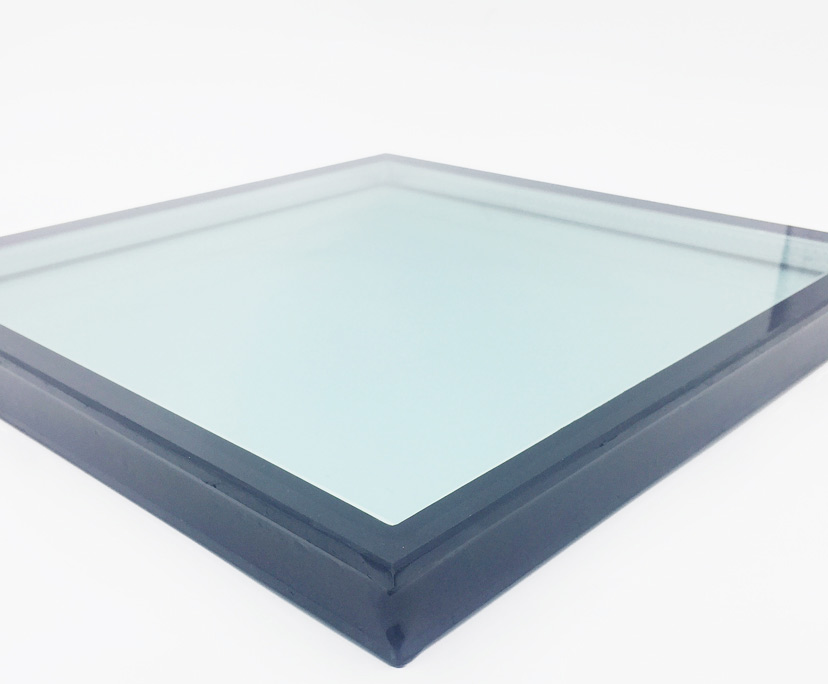

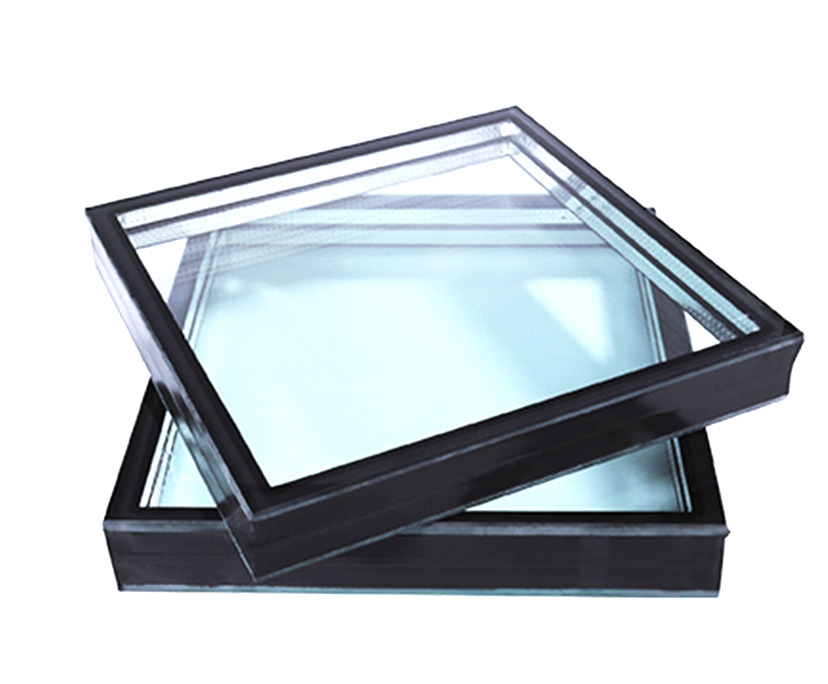

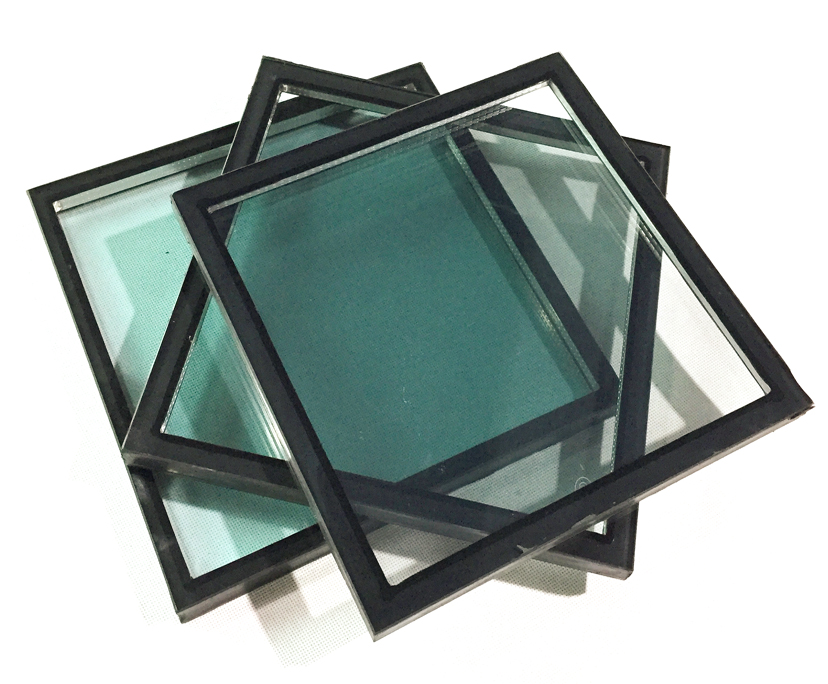

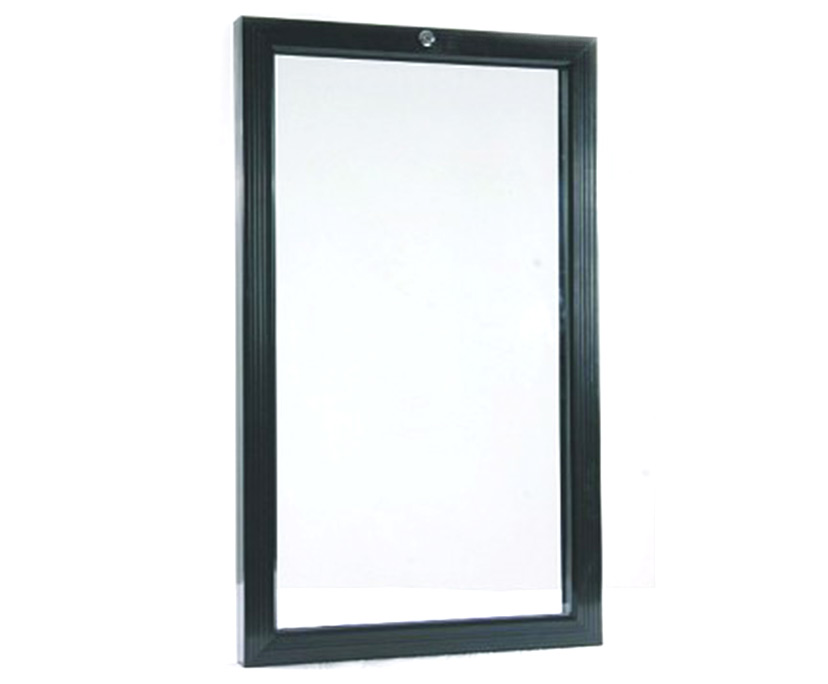

5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass
  • 5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass
  • 5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass
  • 5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass
  • 5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass
  • 5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass
5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass

5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass

Product Introduction:

  • Product name: 35.28mm insulated glass units,laminated glass 11.14mm+15mm spacer insulated glass +laminated glass 9.14mm

  • Other description: insulated glass panels, insulated glass units,tempered insulated glass,glazing,sound proof glass

  • Shape available: Flat insulated glass, curved insulated glass

  • Composititon: 2 pieces 5mm tempered glass laminated glass+15mm spacer+2 pieces tempered 4mm laminated glass

  • Single Glass Thinckness: 5mm to 10mm

  • Insulated glass glue: Butyl glue and sulfur glue

  • Spacer thinckness: 6A 9A 12A 15A 20A 27A 32A

  • Thinckness of single glass panel: 4mm 5mm 6mm 8mm 10mm 12mm ect.

  • Package: Strong exportation wood crates


Share

Product details

BTG 5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass-35.28mm clear insulated glass 11.14 tempered laminated glass+15mm spacer+9.14mm tempered laminated glass

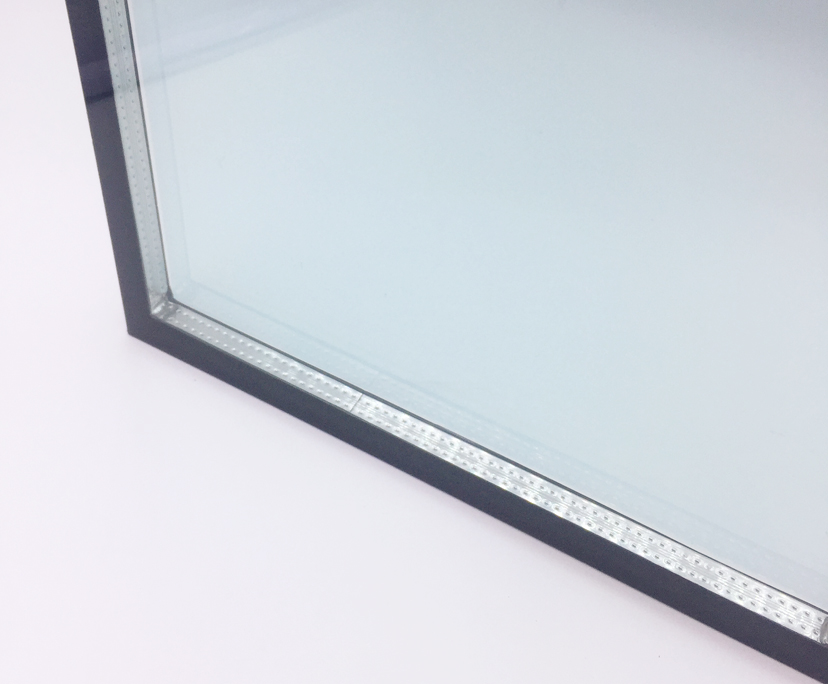

5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass (IGUs) also called insulated glass unit, insulated glazing units, thermal insulation units, double pane glass, dual pane glass, double pane insulated glass, thermal insulation glass, thermal seal insulating glass, double insulated glass. Insulated glass is composed of two or more layers of flat/curved glass, surrounded by high-strength high-density composite adhesive, the two or more pieces of 8mm tempered glass and seal, the glass of the bonding and sealing. The middle filled with dry gas, the spacer filled with desiccant to ensure that the glass between the air dryness. The fuction of air/gas spacer is reduce water vapor penetration. The insulated glass unit is sealed by a secondary edge seal and that make structural robustness to the insulated glass. The aluminum spacer contains a desiccant and can absorb humidity from or within the air space.


Characteristics:

Insulated glass combine with a solar control glass in a double glazed unit. The best advantages for insulated glass is to reduce thermal losses and the best way to improve the energy efficiency of a window or facade is insulated glass units.


1. Energy-saving effect. To reduce the indoor heating, play a great efficiency. Therefore, the greater the window opened, the more obvious energy-saving effect.

2. Improve the indoor environment. High-proformance insulating glass can intercept the considerable energy from the sun into the room, thus preventing discomfort caused by radiant heat and reducing dizziness caused by sunset sunlight.

3. Rich colors and artistic. High-performance insulating glass has a variety of colors, can be selected according to the color, in order to achieve better artistic results.

4. Constant temperature and humidity of the spacial buildings. High-performance insulating glass use. For office buildings, exhibition room, libraries and other public facilities and computer room, precision instrument workshops, chemical plants and other requirements of constant temperature and humidity of the special buildings.

5. Sun protection and anti-evening light dazzling place. Insulated glass can be used for sun protection and anti-evening light dazzling place.


Applications:

Insulating glass is mainly used for outer glass decoration. Its optical properties, thermal conductivity, sound insulation coefficient should be consistent with international standards. Reasonable structure and design to meet the standards of the hollow glass, in order to play its insulation, proof noise, security, proof fire effect.


Insulating glass is mainly used for buildings that require heating, air conditioning, noise or condensation protection, and the need for direct sunlight and special light. Widely used in residential, hotels, office buildings, schools, hospitals, shops and other indoor air conditioning. Can also be used for trains, cars, ships, doors and windows, freezer, ect.


1. Butyl glue insulated glass are used outside. Sulfur glue insulated glass are used inside.

2. Outside usage: Curtain wall glass, facade glass etc.

3.  Inside usage: Window glass, door glass, railing glass etc.



Certification:

5mm+1.14mm+5mm+15A+1.14mm+4mm tempered insulated glass Conforms to the standards of Europe, North American and China:  ISO, CCC, CE, BS6206, EN12510, SGCC,CSI


Sr.ItemGlass TypeMaterial optionThickness(mm)

PVB/EVA/SGP/Alu.

 thickness(mm)

SizeRemark
Min.(mm)Max(mm)
1Building GlassTempered   Glass(Monolithic)Clear glass3-25/200*3003300*13000Contact us for more   information
2Low iron /Ultra clear glass3-25/200*3003300*13000
3Tinted glass3-19/200*3003300*13000
4Coated/Reflective glass5,6,8,10/200*3003300*13000
5Low E glass5,6,8,10/200*3003300*13000
6Curved Tempered   Glass(Monolithic)Clear glass3-25/

Radius>1000mm

,Radius<1000mm

7Low iron /Ultra clear glass3-25/
8Tinted glass3-25/
9Coated/Reflective glass5,6,8,10/
10Low E glass5,6,8,10/
11Laminated GlassClear glass3-25 up0.38,0.76,1.14 up200*3003300*6500
12Low iron /Ultra clear glass3-25 up0.38,0.76,1.14 up200*3003300*6500
13Tinted glass5,6,8,10,12 up0.38,0.76,1.14 up200*3003300*6500
14Coated/Reflective glass5,6,8,10,12 up0.38,0.76,1.14 up200*3003300*6500
15Insulated GlassClear glass3-256,9,12,16,,18,20 up200*3003300*6500
16Low iron /Ultra clear glass3-256,9,12,16,,18,20 up200*3003300*6500
17Tinted glass3-256,9,12,16,,18,20 up200*3003300*6500
18Coated/Reflective glass5,6,8,106,9,12,16,,18,20 up200*3003300*6500
19Low E glass5,6,8,106,9,12,16,,18,20 up200*3003300*6500
20Bullet Proof GlassBullet Proof Glass
0.76 up200*3002450*4500
21Fire Proof GlassSingle piece5-15/200*3003000*40000.5h,1h,1.5h,2h,3h
22Compound glass5-45Customized200*3003300*6500
23Switchable GlassSwitchable glass6-240.38,0.76,1.14 up200*3001800*6000Contact us for more   information
24Louver Product
5-199,12,16,,18,20 up200*3003300*6500
25Sound Proof GlassSound proof glass5-19Customized200*3003300*6500
