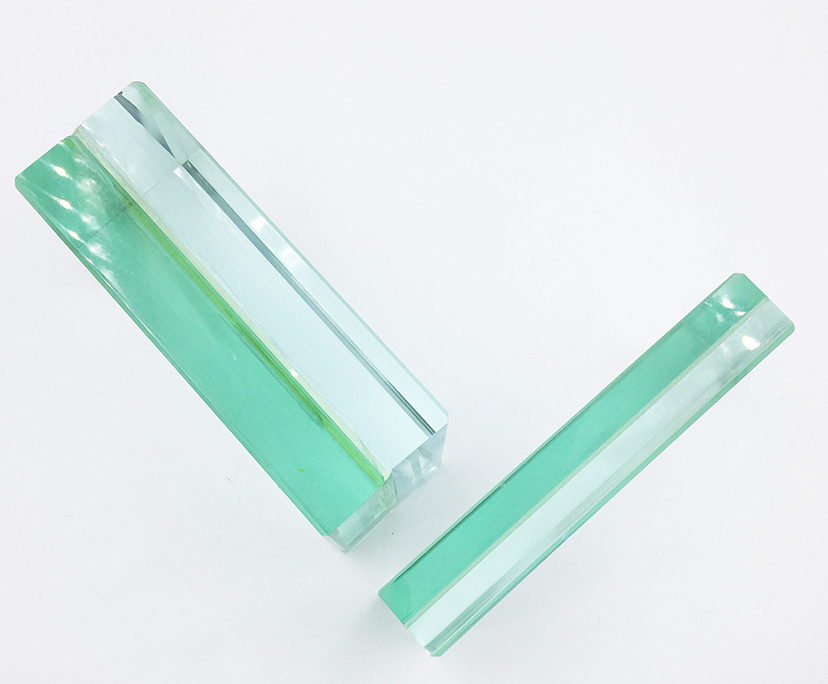

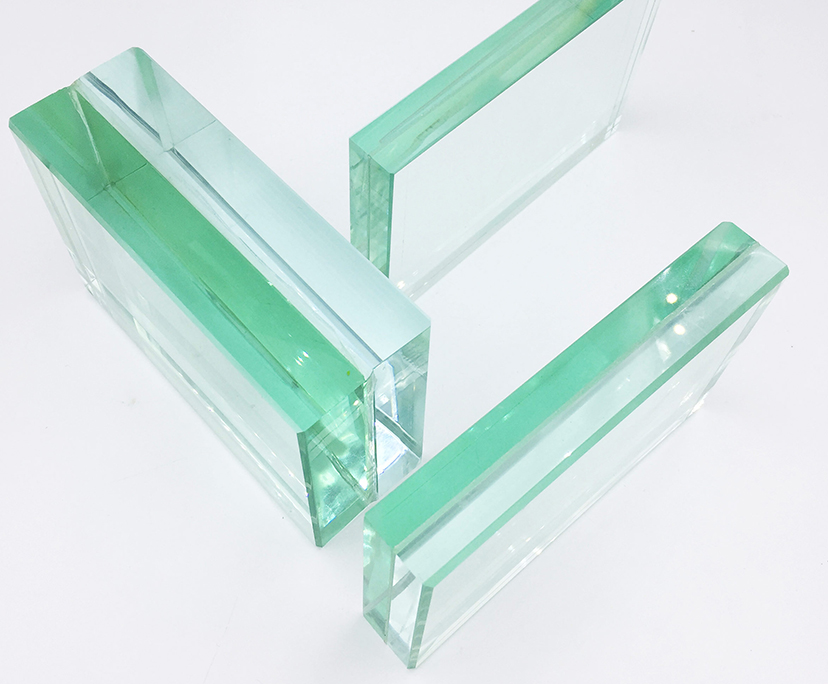

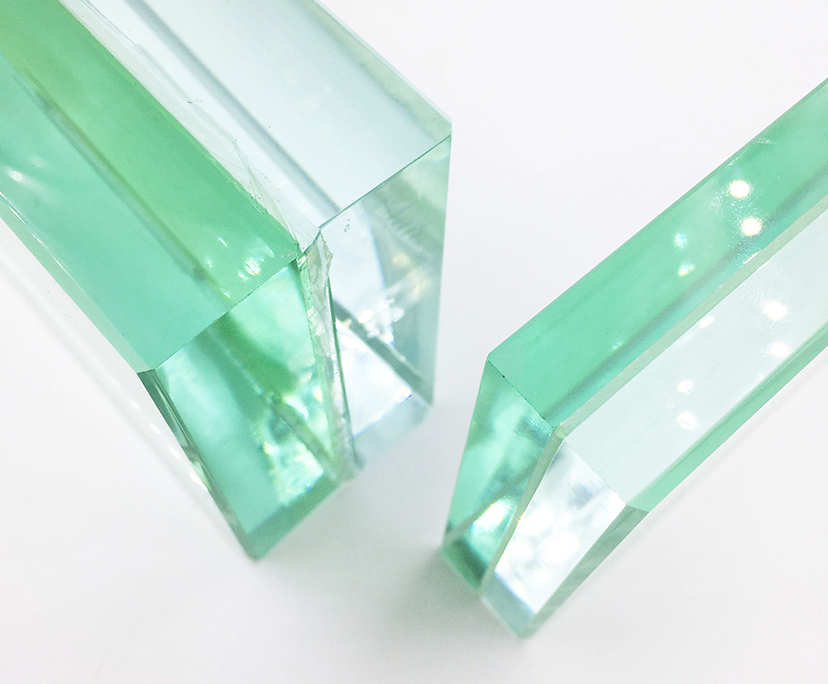

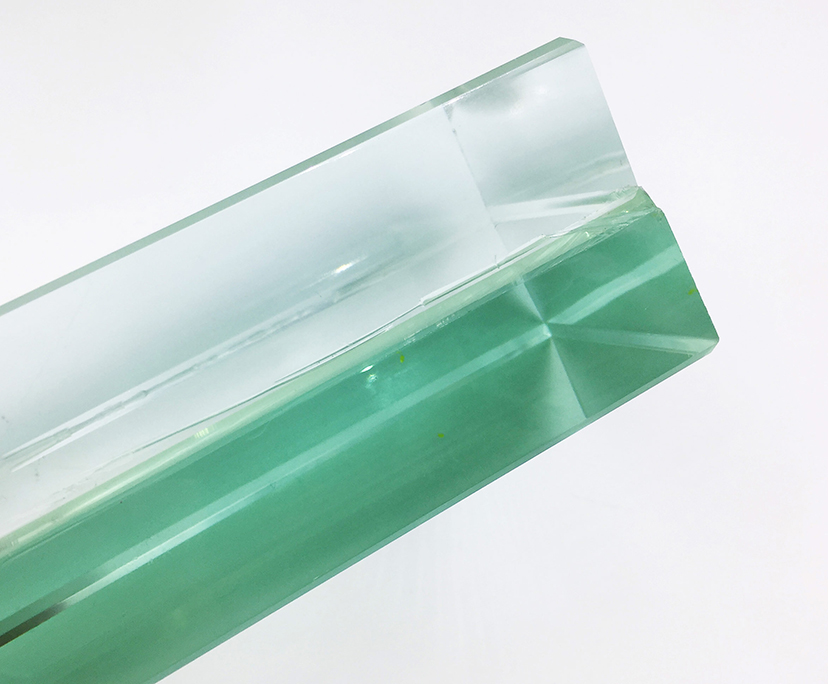

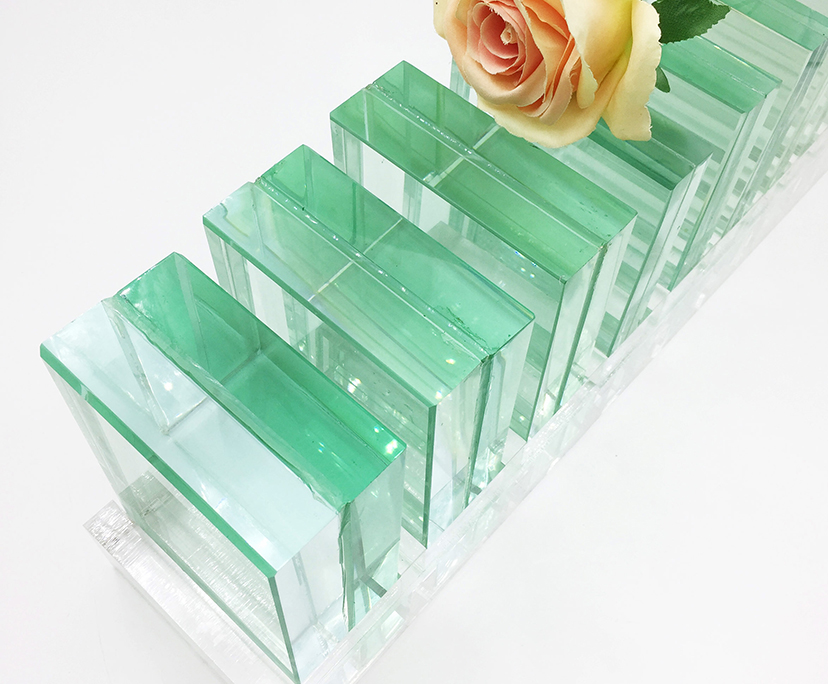

16.72mm laminated glass
Product Introduction:
Laminated Glass is made of two or more pieces of glass which one layer or multi-layers of EVA/PVB/SGP with strong cohesion sandwiched under high temperature and pressure between them. The appearance and installation method of laminated glass sandwiched with transparent film are the same with normal glass, but much more durable.
Share
Product details
| Sr. | Item | Glass Type | Material option | Thickness(mm) | PVB/EVA/SGP/Alu. thickness(mm) | Size | Remark | |
| Min.(mm) | Max(mm) | |||||||
| 1 | Building Glass | Tempered Glass(Monolithic) | Clear glass | 3-25 | / | 200*300 | 3300*13000 | Contact us for more information |
| 2 | Low iron /Ultra clear glass | 3-25 | / | 200*300 | 3300*13000 | |||
| 3 | Tinted glass | 3-19 | / | 200*300 | 3300*13000 | |||
| 4 | Coated/Reflective glass | 5,6,8,10 | / | 200*300 | 3300*13000 | |||
| 5 | Low E glass | 5,6,8,10 | / | 200*300 | 3300*13000 | |||
| 6 | Curved Tempered Glass(Monolithic) | Clear glass | 3-25 | / | Radius>1000mm ,Radius<1000mm | |||
| 7 | Low iron /Ultra clear glass | 3-25 | / | |||||
| 8 | Tinted glass | 3-25 | / | |||||
| 9 | Coated/Reflective glass | 5,6,8,10 | / | |||||
| 10 | Low E glass | 5,6,8,10 | / | |||||
| 11 | Laminated Glass | Clear glass | 3-25 up | 0.38,0.76,1.14 up | 200*300 | 3300*6500 | ||
| 12 | Low iron /Ultra clear glass | 3-25 up | 0.38,0.76,1.14 up | 200*300 | 3300*6500 | |||
| 13 | Tinted glass | 5,6,8,10,12 up | 0.38,0.76,1.14 up | 200*300 | 3300*6500 | |||
| 14 | Coated/Reflective glass | 5,6,8,10,12 up | 0.38,0.76,1.14 up | 200*300 | 3300*6500 | |||
| 15 | Insulated Glass | Clear glass | 3-25 | 6,9,12,16,,18,20 up | 200*300 | 3300*6500 | ||
| 16 | Low iron /Ultra clear glass | 3-25 | 6,9,12,16,,18,20 up | 200*300 | 3300*6500 | |||
| 17 | Tinted glass | 3-25 | 6,9,12,16,,18,20 up | 200*300 | 3300*6500 | |||
| 18 | Coated/Reflective glass | 5,6,8,10 | 6,9,12,16,,18,20 up | 200*300 | 3300*6500 | |||
| 19 | Low E glass | 5,6,8,10 | 6,9,12,16,,18,20 up | 200*300 | 3300*6500 | |||
| 20 | Bullet Proof Glass | Bullet Proof Glass | 0.76 up | 200*300 | 2450*4500 | |||
| 21 | Fire Proof Glass | Single piece | 5-15 | / | 200*300 | 3000*4000 | 0.5h,1h,1.5h,2h,3h | |
| 22 | Compound glass | 5-45 | Customized | 200*300 | 3300*6500 | |||
| 23 | Switchable Glass | Switchable glass | 6-24 | 0.38,0.76,1.14 up | 200*300 | 1800*6000 | Contact us for more information | |
| 24 | Louver Product | 5-19 | 9,12,16,,18,20 up | 200*300 | 3300*6500 | |||
| 25 | Sound Proof Glass | Sound proof glass | 5-19 | Customized | 200*300 | 3300*6500 | ||
